Condensate Polishing Unit (CPU)
High-purity Water Recovery for High-pressure Boiler Systems

Technology Overview

Condensate Polishing Units (CPUs) are critical components in power generation and industrial steam systems where condensate from steam cycles must be treated before reuse. WOG Technologies Limited designs and installs advanced condensate polishing systems to ensure that dissolved solids, corrosion products and impurities are effectively removed from return condensate.

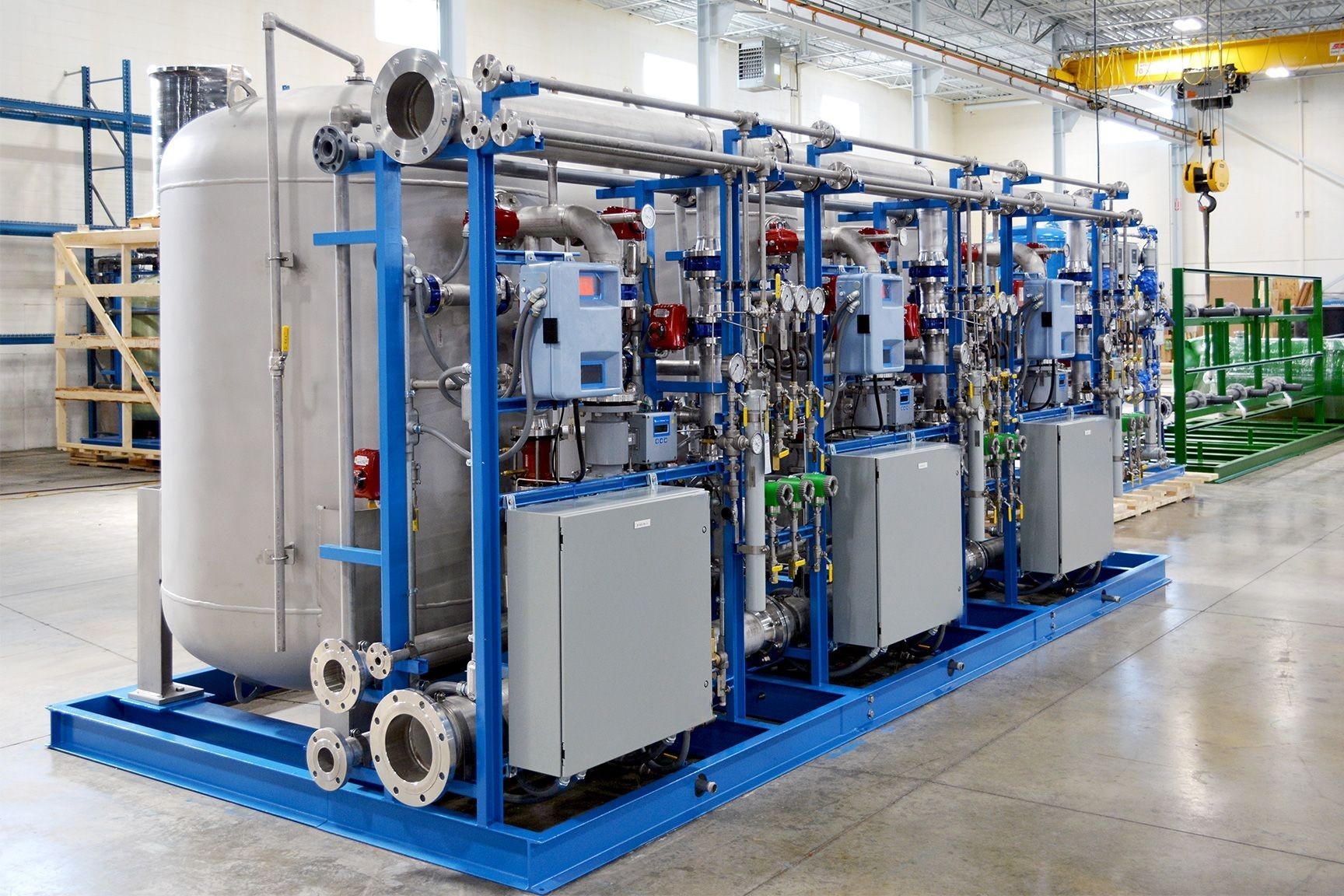

Our CPU systems are engineered to protect high-pressure boilers and turbines by ensuring that feedwater purity consistently meets the strictest conductivity and silica specifications. By integrating ion exchange and filtration into a compact, automated skid, we offer high-performance CPU water treatment solutions for both continuous and batch operations.

How it Works

Condensate from steam systems often carries iron, copper, silica and other impurities resulting from corrosion, scaling and mechanical wear. In a typical CPU, the condensate passes through prefilters and ion exchange resins that remove dissolved ions and suspended matter.

Our systems feature:

  • Strong acid cation and mixed-bed resins
  • Optional degasification and fine filtration stages
Read More

Technology Benefits

  • Protects boilers and turbines from scaling and corrosion
  • Ensures that feedwater conductivity, silica and sodium levels remain within safe limits
  • Reduces blowdown losses and operational downtime
  • Enables the reuse of high-quality water, lowering overall makeup water demand
  • SCADA integration for real-time water quality and resin performance monitoring
  • Low footprint and adaptable to retrofits and new installations

Applications

  • Thermal Power Plants: Supercritical and ultra-supercritical boilers
  • Nuclear Power Plants: Polishing of steam generator condensate
  • Petrochemical and Refineries: High-pressure steam condensate loops
  • Pharmaceuticals and Biotech: Closed-loop steam systems requiring high-purity water
  • Pulp and Paper: Steam recovery and reuse with corrosion control

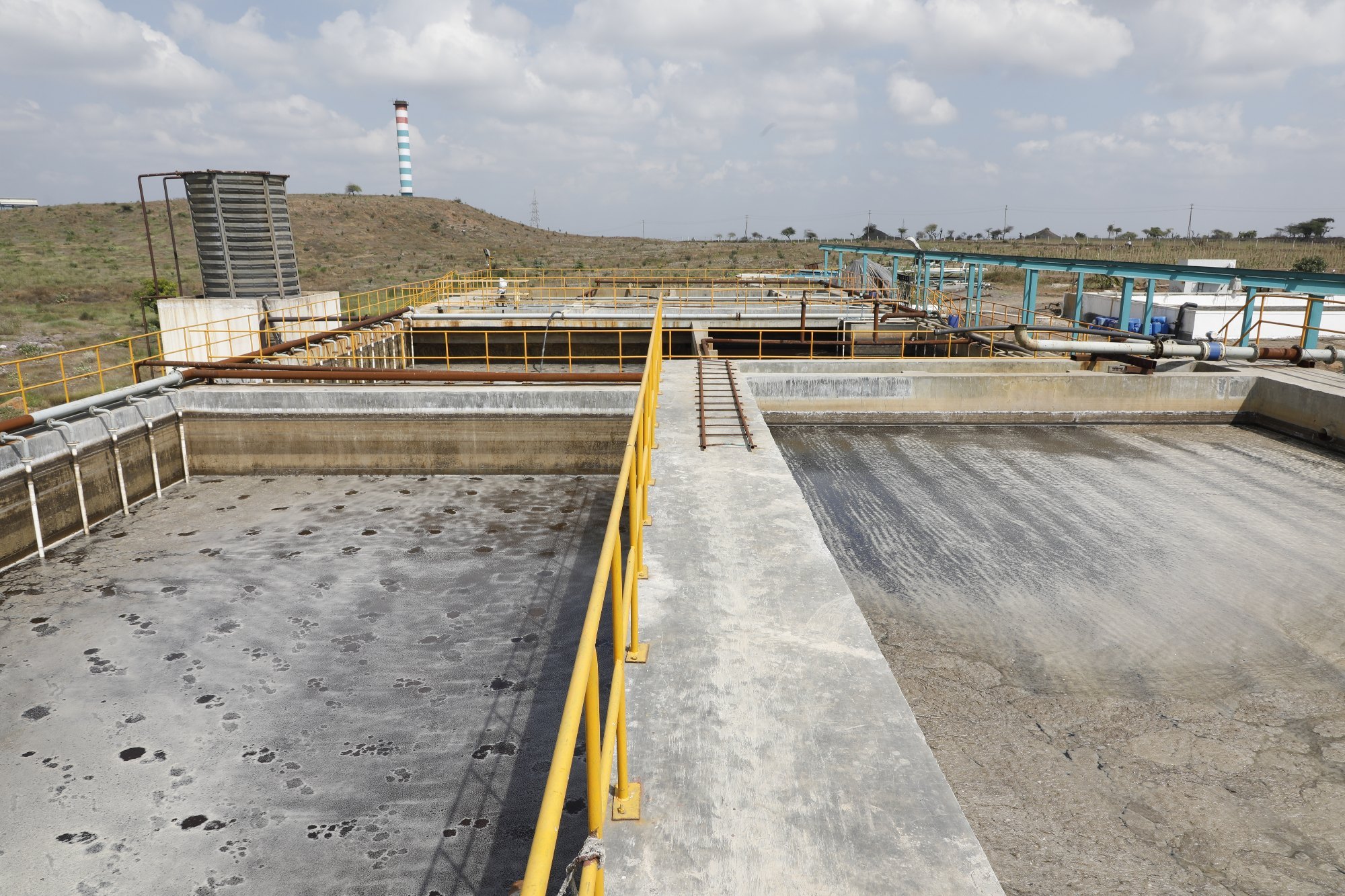

  • Sugar refineries and  distilleries: Treating process condensate and spent wash effluent

Why Choose WOG Technologies Limited?

As a specialized condensate polishing system manufacturer, WOG Technologies Limited offers turnkey CPU solutions customized for each plant’s steam cycle and condensate load profile. Our designs combine reliability, water recovery and regulatory compliance with minimal operator intervention.

Proven performance across thermal and industrial sectors.

In-house design, resin selection, fabrication and commissioning.

Smart automation with predictive resin regeneration logic.

Designed to meet stringent feedwater and steam quality standards.

Full support from feasibility study to lifecycle O&M.

Optimize Steam Recovery with High-efficiency Condensate Polishing

Speak to WOG Technologies Limited to build a custom CPU system that safeguards your boiler, improves cycle efficiency and delivers consistent high-purity water recovery.

FAQs

Our systems consistently deliver condensate with conductivity < 0.2 µS/cm and silica < 10 ppb, depending on condensate feed quality and operational design.

Regeneration frequency depends on condensate load and quality. Our SCADA systems predict resin exhaustion and automate regeneration without interrupting operations.

Oil-contaminated condensate requires pre-treatment. We integrate oil removal systems such as coalescers and activated carbon filters where needed.

Yes. CPUs help maximize water recovery by reusing high-quality condensate, reducing the load on ZLD systems and improving their overall efficiency.

We offer customized polishing units with high-purity resin beds and rigorous material compatibility checks for use in nuclear facilities.
